Detailed Product Description
| Product Name: |
Muti-function Wall Mounted Tap |
Material: |
Brass |
| Valve Core Material: |
Ceramic Cartridge |
Number Of Handles: |
Two Handle |
| Faucet Mount: |
One |
Installation Type: |
Wall Mounted |

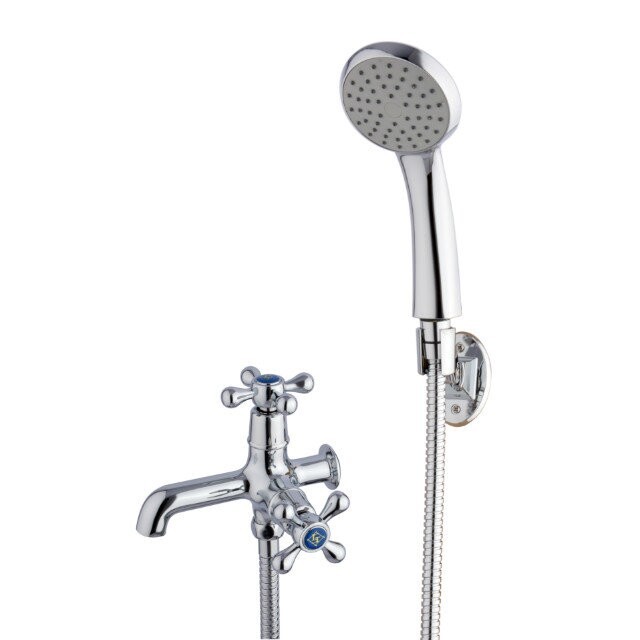

Multi - Function Wall Mounted Taps With Single function Telephone shower
Quick Details
Type: Muti-function wall mounted tap Model Number: HY897 Type: One inlet two outlet
Material: #59 Brass Valve Core Material: Ceramic Color: Chrome
Feature: Concealed mixer Style: Contemporary Warranty: 5 years
Faucet Installation Type: one hole in Wall Mounted OEM Service: Provided
Detailed product description:
*One wall-mounted installation, suitable for Muti-function supply water.
*Two handles control two outlet respectively.
*High purity brass main body with chrome plated.
*High quality imported ceramic cartridge, quality guarantee time:5 years no leakage.
*One inlet two outlet, can connect to heater machine for shower and basin, or connect to wash mashine and single cold tap.
Applications:
Muti - Function taps, shower taps, single cold taps, washer taps etc.
Specifications:
|
Material:
|
Brass main body and zinc alloy handle
|
|
Brass content:
|
59%
|
|
Cartridge:
|
Ceramic cartridge, Hain-Yo brand
|
|
Surface treatment:
|
Chrome-plated, other plating available, including brush nickle, bronze, antique brass, etc.
|
|
The thickness of plating:
|
8~12um
|
|
Salt Spray Testing:
|
General plating: 24hours/Acid;120hours/neutral
Acid Plating: 48hours/Acid;240hours/neutral
|
|
Water Pressure Testing:
|
0.05-0.9MPA
|
|
Cartridge Life time:
|
500,000 cycles
|
|
Quality Guarantee:
|
5 years Quality Guarantee
|
|
Drawing:
|
Please contact us to get
|
|
Hardware needed
for mounting:
|
Along with the faucet
|
|
A.I.:
|
Along with box packing
|
Service conditions:
1) The working pressure of the product is 0.05MPa-0.9MPa
2) The temperature is no more than 85° when supply hot water.
3) Don't use vapor when supply hot water.
4) The working temperature is more than 0°
5) Please follow marks R and L, don't connect the cold and hot pipe inversely.
6) Embed the body connecting pipe beforehand when install.
Competitive Advantage:
- Quality Guarantee: 5 years no leakage.
- Simples ready in 3 to 7 days.
- 100% of our products are tested before shipment.
- High-quality and Eco-friendly faucets: All faucets use #59 Brass, imported ceramic cartridge, advance environmental protection electro-plated technology, more conducive to environmental protection.
- Laser LOGO on faucet’s handle, paste products label on our neutral color box, with our brand printing or OEM brand printing.
- Individual Package: Individual package and 8 units double packed with carton.
- Easy Assembly: All hardware needed for mounting is included with faucet, assembly instruction along with every unit box.
- Support hotel projects or design company.
- Handy products were elected to Green Environmental Protection Head Chooses A Product in 2010.
- Your one-stop supplier with sanitary wares.
