                        Product Details:



  |

| Product Name: | Urinal Flush Valve | Water Flow: | Adjustable |
|---|---|---|---|
| Material: | H59 Brass | Size: | G1/2" |
| Feature: | Delay Action Flush Valve | Pressure: | 0.05MPa-0.9MPa |
| Installation: | Wall Mounted, Exposed |

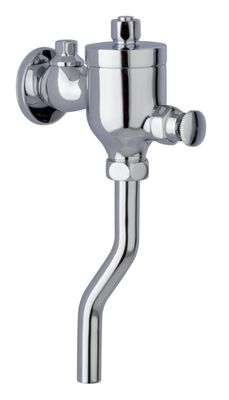

H59 Brass Wall Mounted Urinal Flush Valve Self Closing Time 3 - 5 Seconds
Quick details:
Self - closing Urinal flush valve
Model: HN-7G07-TCP
Casted brass body with chrome plated
Urinal Flush Valve: G1/2"
Push button activated
Delay action operation
Exposeded installation
Priority Delivery: 15days
Detailed product description:
Exposed Self-closing Urinal Flush Valve. A casted brass body that is chrome plated for years of durability. Adjustable water flow works for saving water. Wall mounted installation.
Applications:
Self-closing Urinal Flush valve, Commercial Flush valve, Wall mounted Urinal Flush valve
Specifications:
|
			 Material:  |

			 Brass  |

|
			 Brass content:  |

			 59%  |

|
			 Surface treatment:  |

			 Chrome-plated  |

|
			 The thickness of plating:  |

			 8~12um  |

|
			 Salt Spray Testing:  |

			 General plating: 24hours/Acid;120hours/neutral Acid Plating: 48hours/Acid;240hours/neutral  |

|
			 Water Pressure Testing:  |

			 0.05-0.9MPA  |

|
			 Drawing:  |

			 Please contact us to get  |

|
			 Hardware needed for mounting:  |

			 Along with the faucet  |

|
			 A.I.:  |

			 Along with box packing  |

|
			 Required water pressure:  |

			 Advise us for factory settings  |

|
			 Delay time:  |

			 Advise us for factory settings  |

Competitive Advantage:
Service conditions:
1)The working pressure of the product is 0.05MPa-0.9MPa
2)The working temperature is more than 0°

![]()
