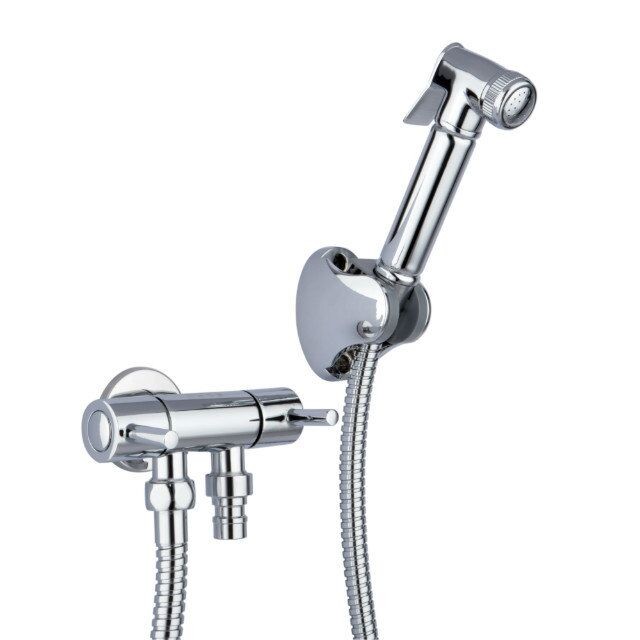

Wall Mounted Multi - Function Washing Machine Taps With Bidet shower

negotiation
MOQ
Wall Mounted Multi - Function Washing Machine Taps With Bidet shower
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Washing Machine Tap
Material: H59 Brass
Valve Core Material: Ceramic Cartridge
Number Of Handles: Two Handle
Faucet Mount: One Hole
Installation Type: Wall Mounted
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Handy
Certification: CE
Model Number: HN-5F20B
Payment & Shipping Terms
Packaging Details: Color box, carton
Delivery Time: 25days
Payment Terms: Payment by T/T
Supply Ability: 10000pcs/month
Product Description

Wall Mounted Multi - Function Washing Machine Taps With Bidet shower





Quick Details

Type: Washing machine taps              Bidet Shower: solid brass             Model Number: HN-5F20B          Type: One inlet two outlet                    Valve Core Material: Ceramic           Color: Chrome

Style: Contemporary                       Warranty: 5 years

Faucet Installation Type: one hole in Wall Mounted                 OEM Service: Provided




Detailed product description:


* Single hole wall-mounted installation, suitable for Muti-function supply water.

* One inlet two outlet, can connect to washing machine, or connect to bidet shower or hand shower.

* Two handles control two outlet respectively.

* High purity brass main body with chrome plated.

* High quality imported ceramic cartridge, quality guarantee time:5 years no leakage.




Applications:



Washing machine taps, Muti - Function taps,single cold taps, washer taps etc.





Specifications:



Material:

Brass main body and zinc alloy handle

Brass content:

59%

Cartridge:

Ceramic cartridge, Hain-Yo brand

Surface treatment:

Chrome-plated, other plating available, including brush nickle, bronze, antique brass, etc.

The thickness of plating:

8~12um

Salt Spray Testing:

General plating: 24hours/Acid;120hours/neutral

Acid Plating: 48hours/Acid;240hours/neutral

Water Pressure Testing:

0.05-0.9MPA

Cartridge Life time:

500,000 cycles

Quality Guarantee:

5 years Quality Guarantee

Drawing:

Please contact us to get

Hardware needed

for mounting:

Along with the faucet

A.I.:

Along with box packing





Service conditions:
1) The working pressure of the product is 0.05MPa-0.9MPa
2) The temperature is no more than 85° when supply hot water.
3) Don't use vapor when supply hot water.
4) The working temperature is more than 0°
5)  Please follow marks R and L, don't connect the cold and hot pipe inversely.
6)  Embed the body connecting pipe beforehand when install.



Competitive Advantage:



  1. Quality Guarantee: 5 years no leakage.
  2. Simples ready in 3 to 7 days.
  3. 100% of our products are tested before shipment.
  4. High-quality and Eco-friendly faucets: All faucets use #59 Brass, imported ceramic cartridge, advance environmental protection electro-plated technology, more conducive to environmental protection.
  5. Laser LOGO on faucet’s handle, paste products label on our neutral color box, with our brand printing or OEM brand printing.
  6. Individual Package: Individual package and 8 units double packed with carton.
  7. Easy Assembly: All hardware needed for mounting is included with faucet, assembly instruction along with every unit box.
  8. Support hotel projects or design company.
  9. Handy products were elected to Green Environmental Protection Head Chooses A Product in 2010.
  10. Your one-stop supplier with sanitary wares.
