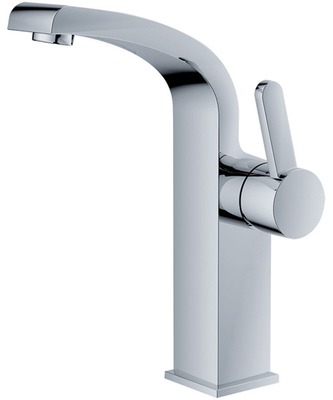

Big High Single Lever Mixer Taps For One Hole Basin or Lavatory Installation
Quick details
Type: Single lever mixer taps
Model Number: HN-3A23
Brand: Handy
Material: H59 Brass
Cartridge: Sedal Ceramic cartridge
Aerator: Neoperl Aerator
Number of Handles: One handle
Surface Treatment: Polished
Surface Finishing: Chrome
Faucet Mount: Single hole
Installation Type: Deck Mounted
Warranty: 5 years
Detailed product description:
* High Single hole basin faucet suitable for above counter basin installation.
* H59 brass main body, Zinc alloy handle, Hain-Yo/Sedal ceramic cartridge.
* With 2 x 40cm stainless steel hose.
* Clavate handle independent switch, Supply for mixed cold and hot water.
* Electro plating thickness reach to 8~12 micron, can passed 120hours salty pray testing.
* Bubbler in outlet makes the stream more smoothly.
* Quality guarantee time:5 years no leakage.
Service conditions:
1)The working pressure of the products is 0.05MPa-0.9MPa
2)The temperature is no more than 85° when supply hot water.
3) Don't use vapor when supply hot water.
4)The working temperature is more than 0°
5)The suitable dimension of the sink hole is ø33mm-ø38mm
Applications:
Single lever mixer taps, Single lever faucet, Chain hotel faucets, home faucets, etc.
Specifications:
| Material: |
#59-1Brass main body and zinc alloy handle |
| Cartridge: |
Hain-Yo / Sedal Ceramic cartridge |
| Surface treatment: |
Chrome-plated, other plating available, including brush nickle, red bronze, antique brass etc. |
| The thickness of plating: |
8~12um |
| Salt Spray Testing: |
General plating: 24hours/Acid;120hours/neutral
Acid Plating: 48hours/Acid;240hours/neutral
|
| Water Pressure Testing: |
0.05-0.9MPA |
| Cartridge Life time: |
500,000 cycles |
| Quality Guarantee: |
5 years Quality Guarantee |
| Drawing: |
Please contact us to get |
|
Hardware needed
for mounting:
|
Along with the faucet |
| A.I.: |
Along with box packing |
Competitive Advantage:
- 100% of our products are tested before shipment.
- Using #59 Brass, imported ceramic cartridge, Neoperl aerator, advance environmental protection electro-plated technology, more conducive to environmental protection.
- Quality guarantee 5-year no leakage, no stains.
- Private logo on products is acceptable.
- Simples ready in 3 to 7 days.
- Packing: Fabric bag, color box/brown box, master Carton.
- Professional single lever mixer tap manufacturer.
- Easy Assembly: All hardware needed for mounting is included with faucet, assembly instruction along with every unit box.
- OEM. ODM. DIY are welcomed. Products dimension, electroplating color, laser logo and color box printing all are customized. Supporting project purchase, matching supplier and customers’ preference DIY complete set.
- Factory has strong production ability, delivery on time.
- Handy products were elected to Green Environmental Protection Head Chooses A Product in 2010.
- Your one-stop supplier with sanitary wares.
