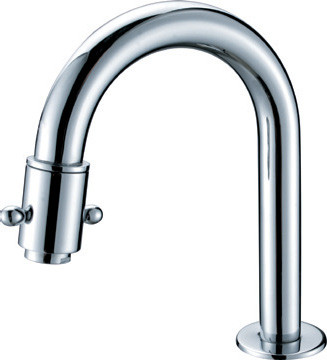

One hole sink Basin Tap Faucets with rotation switch for glass basin
Quick details
Type: Sink faucet Model Number: HN-5C24 Faucet Type: Single cold or hot Brand:Handy Material: 59% Brass Valve Core Material: Ceramic
Handle: rotation switch Style: Contemporary Surface Treatment: Polished
Surface Finishing: Chrome Faucet Mount: Single hole Installation Type: Deck Mounted
Warranty: 5 years
Detailed product description:
* Single hole sink installation, suitable for glass basin, kitchen sinks
* High purity brass main body, Water pipe can’t be rotated.
* Bubbler in outlet makes the stream more smooth, Ceramic cartridge,
* Quality guarantee time:5 years no leakage.
Applications:
Glass wash basin, Kitchen faucet, home faucets, Chain hotel faucets, commercial faucet, household faucets etc.
Specifications:
Material: |
#59-1Brass main body and zinc alloy handle |
Cartridge: |
Hain-Yo Ceramic cartridge, Guarantee 5 years no leakage |
Surface treatment: |
Chrome-plated |
The thickness of plating: |
8~12um |
Salt Spray Testing: |
General plating: 24hours/Acid;120hours/neutral Acid Plating: 48hours/Acid;240hours/neutral |
Water Pressure Testing: |
0.05-0.9MPA |
Cartridge Life time: |
500,000 cycles |
Quality Guarantee: |
5 years Quality Guarantee |

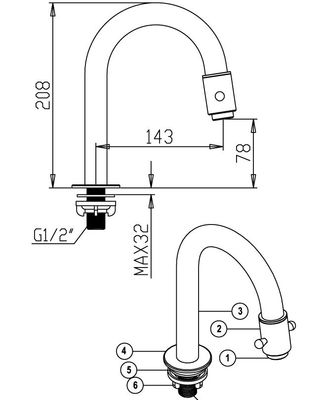

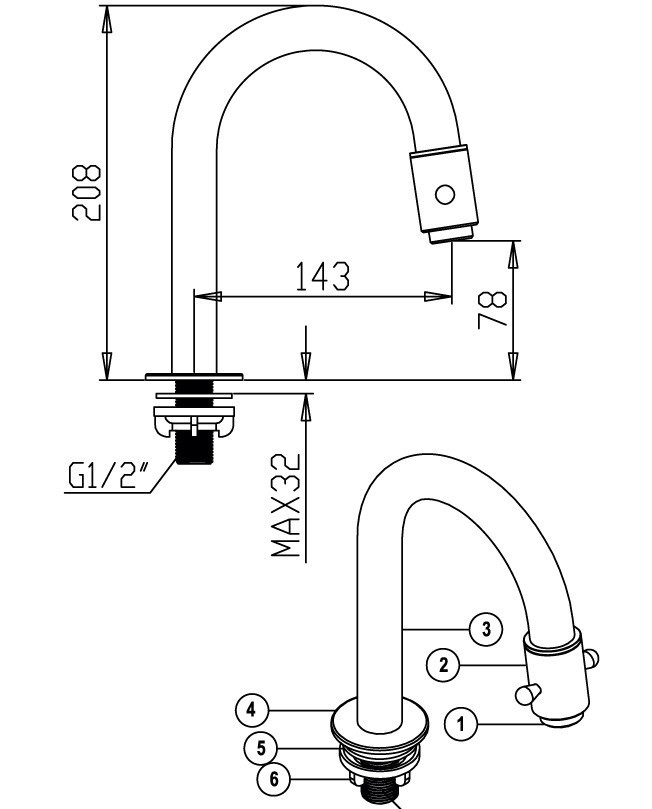

Drawing: |
Please contact us to get |
Hardware needed for mounting: |
Along with the faucet |
A.I.: |
Along with box packing |
Competitive Advantage:
Service conditions:
1)The working pressure of the products is 0.05MPa-0.9MPa
2)The temperature is no more than 85° when supply hot water.
3)Don't use vapor when supply hot water.
4)The working temperature is more than 0°
5)The suitable dimension of the sink hole is ø24mm-ø30mm
No |
Part Name |
QTY |
Material |
1 |
Wave |
1 |
Brass chrome plated |
2 |
Hand wheel |
1 |
Brass chrome plated |
3 |
Valve body |
1 |
Brass chrome plated |
4 |
Escutcheon |
1 |
Brass chrome plated |
5 |
Gasket |
1 |
Rubber |
6 |
Fixed nut |
1 |
Engineering plastics |
